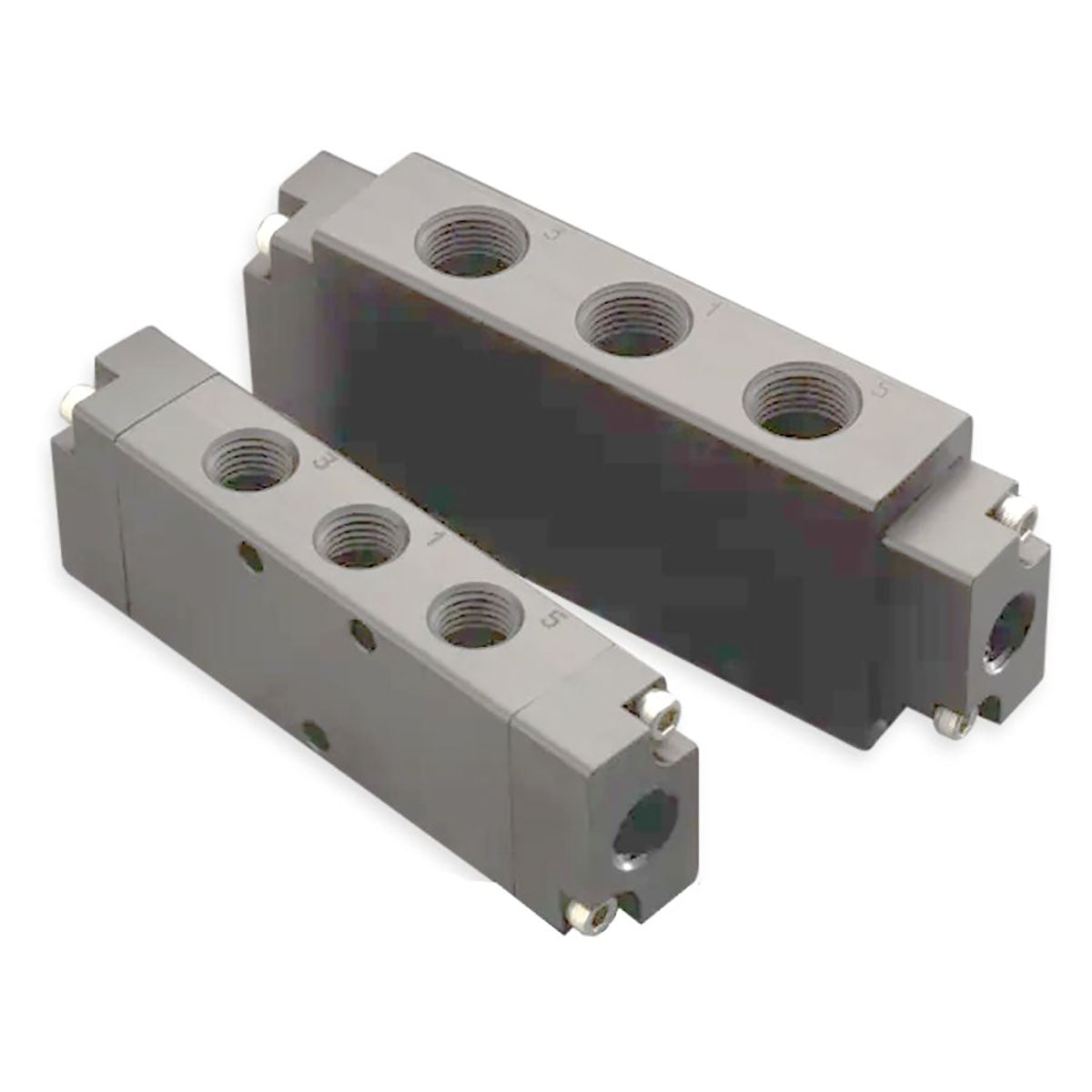

Alkon TD-4320 Single Air Pilot Valves with Spring Return, 4-way, 5-ported, 2-position, 1/4” NPT TD-4320
Alkon TD-4320 Single Air Pilot Valves with Spring Return, 4-way, 5-ported, 2-position, 1/4” NPT TD-4320
Alkon
SKU:TD-4320
In stock
Quantity Pricing Available
Free Same Day Shipping
This item has a 1-year manufacturer's warranty.
Couldn't load pickup availability
Features
The Trans-DOT TD-4320 Series valves are 4-way, 1/4” NPT, 5-ported, 2-position, single air pilot valves with spring return.
Air is typically supplied to port #1, but dual pressure operation is also possible, with air supplied to ports #3 and #5, and port #1 serving as a common exhaust.
Specifications
Material: Black anodized aluminum, urethane seals
Function: 5/2 single pilot, spring return
Mounting: Inline, or thru hole mount
Medium: Air
Pressure: 200 psi max supply
Flow: Cv = 1.0 (48 scfm fully open)
Fasteners: Stainless steel
Temperature: -40°F to +180°F
Pilot Pressure: 40 psi min
