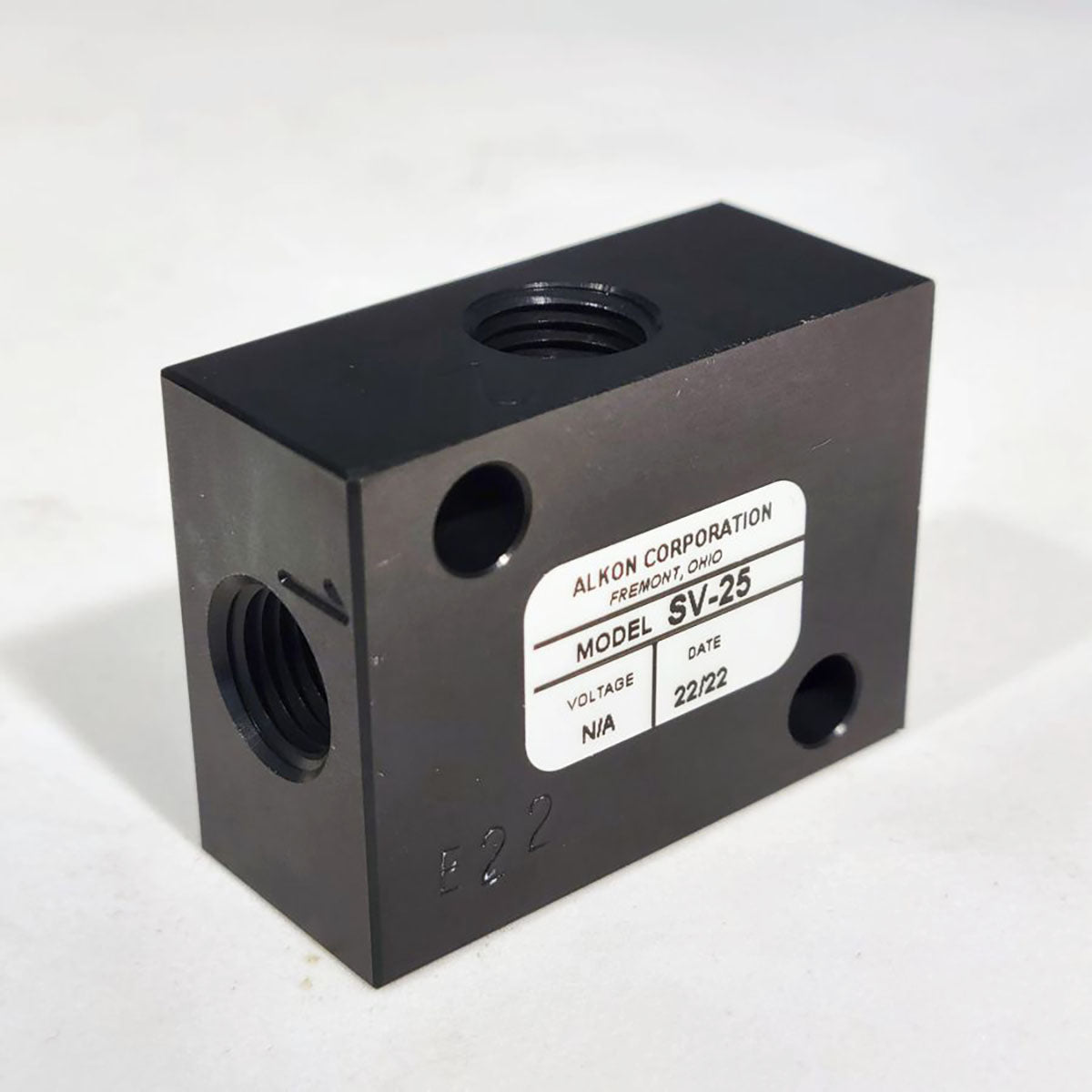

Alkon SV-25 Shuttle Valve Piston Type 1/4 NPTF
Alkon SV-25 Shuttle Valve Piston Type 1/4 NPTF
No reviews
Alkon
SKU:SV-25
1999 in stock
Regular price
$65.32 USD
Regular price
Sale price
$65.32 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Alkon SV-25 ¼” Female Double Check (or Double Shuttle) Valve is designed so one or two outlets need to be supplied by one or two inlet sources.
This versatile valve is PSI rated from 10psi to 150psi, contains low temp buna seals, a stainless steel ball, and an anodized aluminum body.
It operates in temperatures ranging from -40 to +175 °F.
It includes a stainless-steel ball inside a machined anodized aluminum cylinder.
When pressure is applied to port 1a, the ball moves to block port 1b and connects ports 2a and 2b.
Conversely, pressure to port 1b connects ports 2a and 2b and blocks port 1a.
This versatile valve is PSI rated from 10psi to 150psi, contains low temp buna seals, a stainless steel ball, and an anodized aluminum body.
It operates in temperatures ranging from -40 to +175 °F.
It includes a stainless-steel ball inside a machined anodized aluminum cylinder.
When pressure is applied to port 1a, the ball moves to block port 1b and connects ports 2a and 2b.
Conversely, pressure to port 1b connects ports 2a and 2b and blocks port 1a.
This item has a 1-year manufacturer's warranty.
| Brand | Alkon | |
|---|---|---|
| Part Number / Model | SV-25 | |
| Type | Female Double Check (or Double Shuttle) Valve | |
| Material | Anodized Aluminum Body, Stainless Steel Ball | |
| Port Size | 1/4" | |
| Seal Material | Low Temp Buna Seals | |
| Operating Pressure | 10psi to 150psi | |
| Operating Temperature | -40 - 175 °F | |
| Exhaust Ports | 1 or 2 (either outlet ports may be plugged if desired) |
