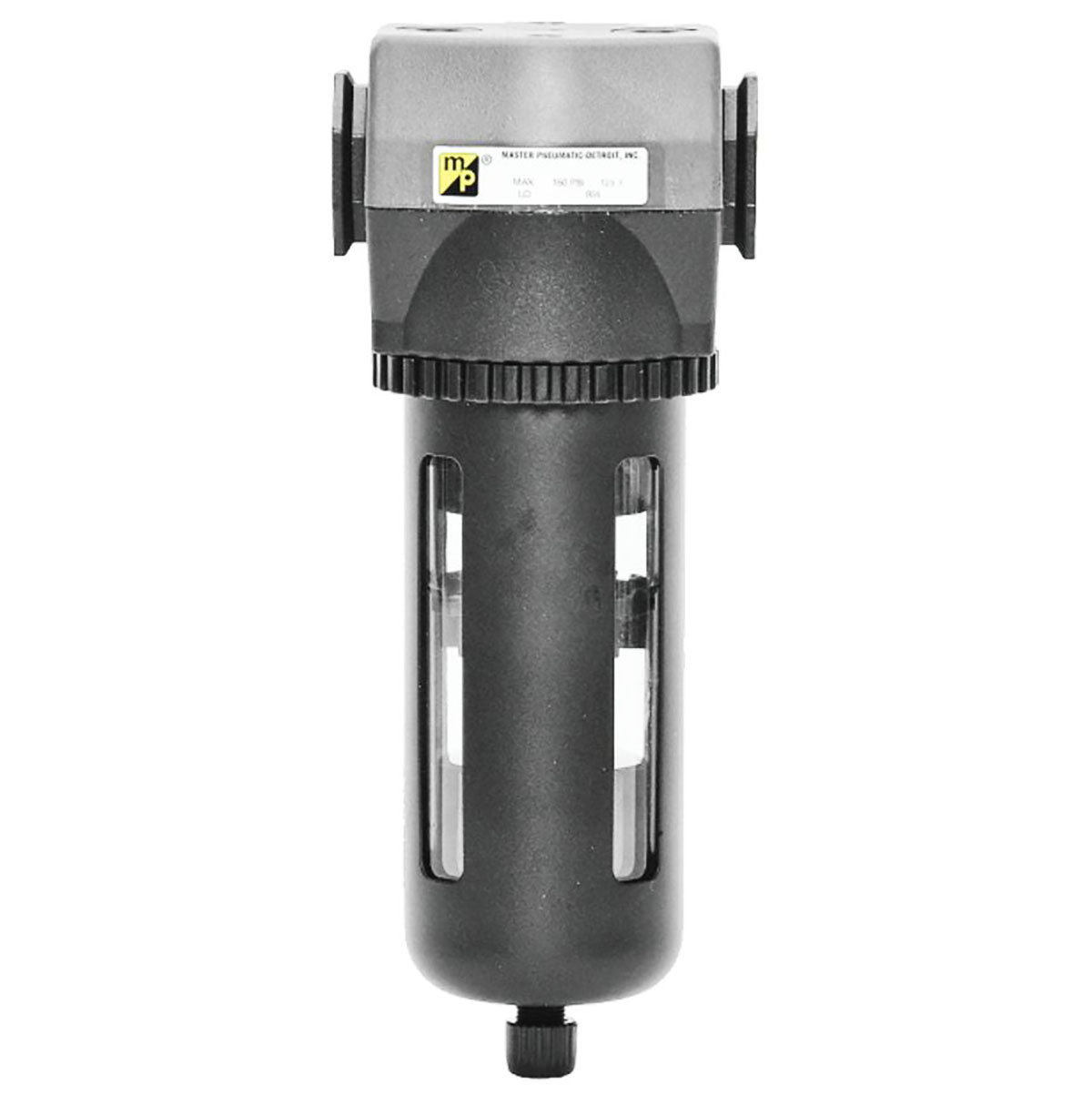

Master Pneumatic FD380-6 Filter
Master Pneumatic FD380-6 Filter
Master Pneumatic
SKU:FD380-6
Low stock: 4 left
Regular price
$83.37 USD
Regular price
Sale price
$83.37 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Master Pneumatic FD380-6 Filter Features:
- Modular, inline mounting
- Self-relieving
- Pressure adjustment locking key and tamper resistant
Port Size: 3/4 NPT
Max CFM: 200 CFM
Max Pressure Inlet: 150 PSIG
Matched to Air Motor: Gast 6AM series, Gast 8AM series
This item has a 1-year manufacturer's warranty.
Product Specifications
| Ambient/Media Temperature: | Plastic Bowl, all drain types: 40° to 125°F (4° to 52°C) |
| Body: | Die-cast Zinc |
| Bowl: | 9-Ounce (270-ml) capacity polycarbonate plastic with steel shatter guard |
| Bowl Drain: | Internal automatic drain |
| Bowl Ring: | Nylon |
| Cap Color: | Standard-Accent gray |
| Filter Element: | 5-μm-rated polyethylene |
| Fluid Media: | Compressed Air |
| Inlet Pressure Minimum: | 15 PSIG (1 bar) with automatic drain, 30 PSIG (2 bar) with internal float drain. Plastic bowl: 150 PSIG (10 bar) |
| Seals: | Nitrile |
