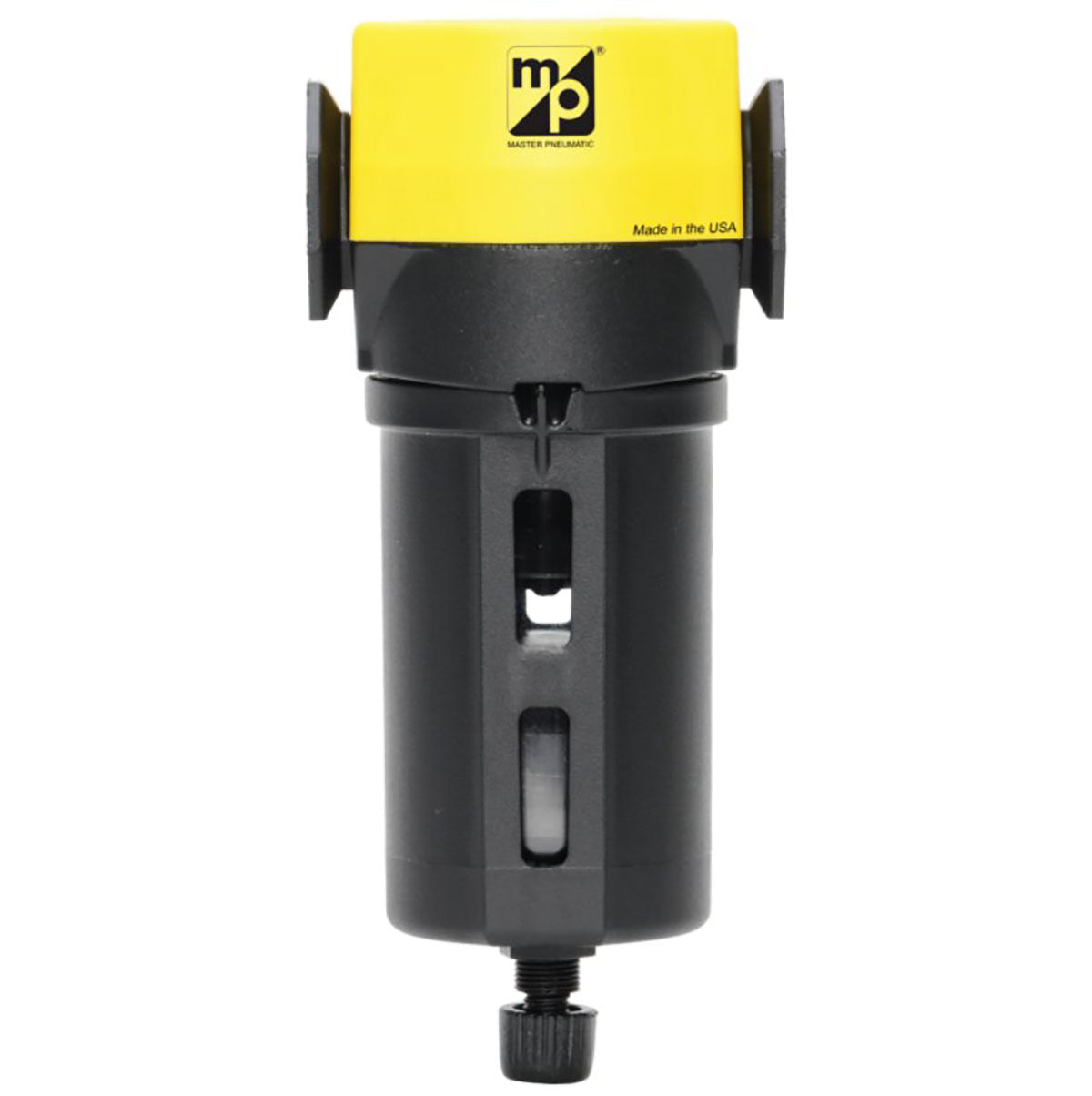

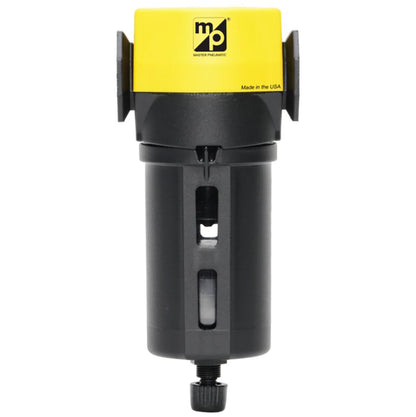

Master Pneumatic FD350-4 Filter

Master Pneumatic FD350-4 Filter

Master Pneumatic

FD350-4

Low stock: 2 left

$70.00 USD
$70.00 USD
Sale Sold out
Shipping calculated at checkout.

The Master Pneumatic FD350-4 Filter Features:

  • Modular or inline mounting
  • Designed to remove particulate material up to 5 microns from the airstream to protect downstream equipment
  • Superior removal of free water up to 98% efficiency
  • Removal of effluents via automatic float drains
  • Inlet pressure is rated at 30-150 PSIG (17 bar)
  • Compatible with the modular 380 series of products
  • NPTF port threads
  • Self-Relieving
  • Pressure adjustment locking key and tamper-resistant

Port Size: 1/2 NPT
Max CFM: 90 CFM
Max Pressure Inlet: 150 PSIG
Matched to Air Motor: Gast 4AM series

This item has a 1-year manufacturer's warranty.


Product Specifications
Ambient/Media Temperature: Plastic bowl, manual drain 40° to 125°F (4° to 52°C)
Body: Die-cast zinc
Bowl: 5.1-Ounce (151-ml) capacity polycarbonate plastic with nylon shatter guard
Bowl Drain: Automatic internal drain
Cap Color: Gray
Filter Element: 5-μm-rated polyethylene
Fluid Media: Compressed air
Inlet Pressure: Plastic bowl & manual drain: 0-150 PSIG (0-10 bar)
Seals: Nitrile
