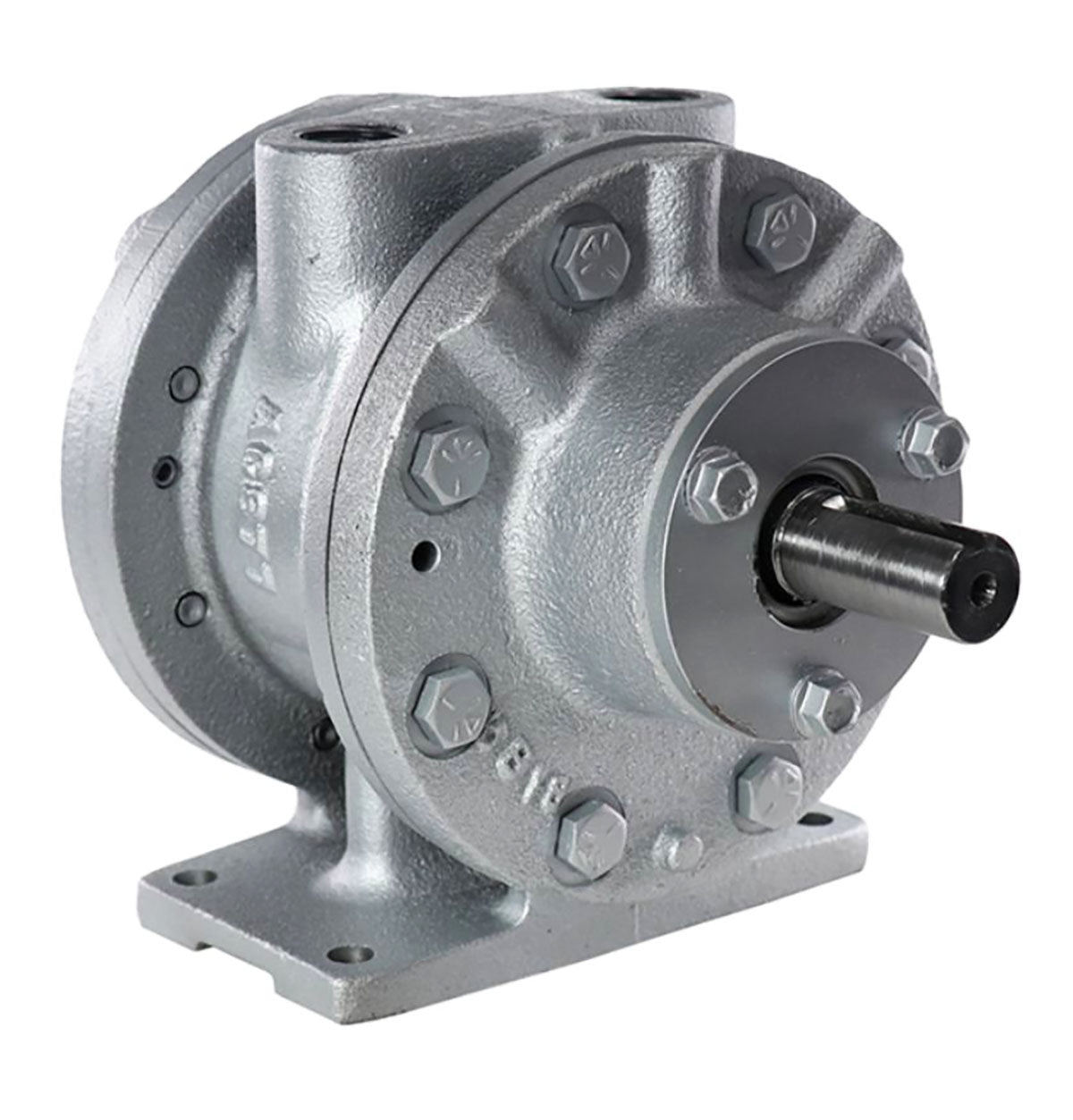

Gast 8AM-FRV-2B Air Motor Reversible Lubricated 5 HP
Gast 8AM-FRV-2B Air Motor Reversible Lubricated 5 HP
No reviews
Gast
SKU:8AM-FRV-2B
15 in stock
Regular price
$656.20 USD
Regular price
$683.55 USD
Sale price
$656.20 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The 8AM family offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control are not only cost-effective over electric motor controls, but they can also be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electric device and cool-running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.
Equipment comes with a 1 year OEM warranty.
FRL Combo: MP10215
Filter: FD380-6
Regulator: R380-6G
Lubricator: L380D-6
To rebuild or repair this Air Motor, please use the Gast Repair Kit: K210.
The 8AM-FRV-2B air motor features:
- an adjustable operating speed up to 2,500 RPM
- power output up to 5.25 H.P.
- non-electrical
- cool running
- extreme temperature locations (0–250 °F)
Equipment comes with a 1 year OEM warranty.
FRL Combo: MP10215
Filter: FD380-6
Regulator: R380-6G
Lubricator: L380D-6
To rebuild or repair this Air Motor, please use the Gast Repair Kit: K210.
This item has a 1-year manufacturer's warranty.
| Key Type: | M30-KEYSQ 1.0 |
|---|---|
| Max Air Consumption: | 175 cfm ( 297.33 m3h ) |
| Max Power: | 5 hp ( 3.73 kW ) |
| Max Pressure: | 7 bar ( 101.53 psi ) |
| Max Sound Level: | 105 dB(A) |
| Max Speed: | 2500 rpm |
| Max Torque: | 185 in-lb ( 20.91 N m ) |
| Mount: | FOOT |
| Output Shaft Type: | Keyed |
| Port Size and Type: | 1/2" NPT |
| Regulatory Approval: | CE, ATEX |
| Rotation: | Reversible |
| Shaft Size: | 0.75 in ( 19.05 mm ) |
| Stainless Steel: | NO |
| Starting Torque @ 80psi: | 117 in-lb ( 13.22 N m ) |
| Torque Max Speed: | 132 in-lb ( 14.92 N m ) |
| Vanes: | 4 |
| Weight: | 27 lbs ( 12.25 kg ) |
