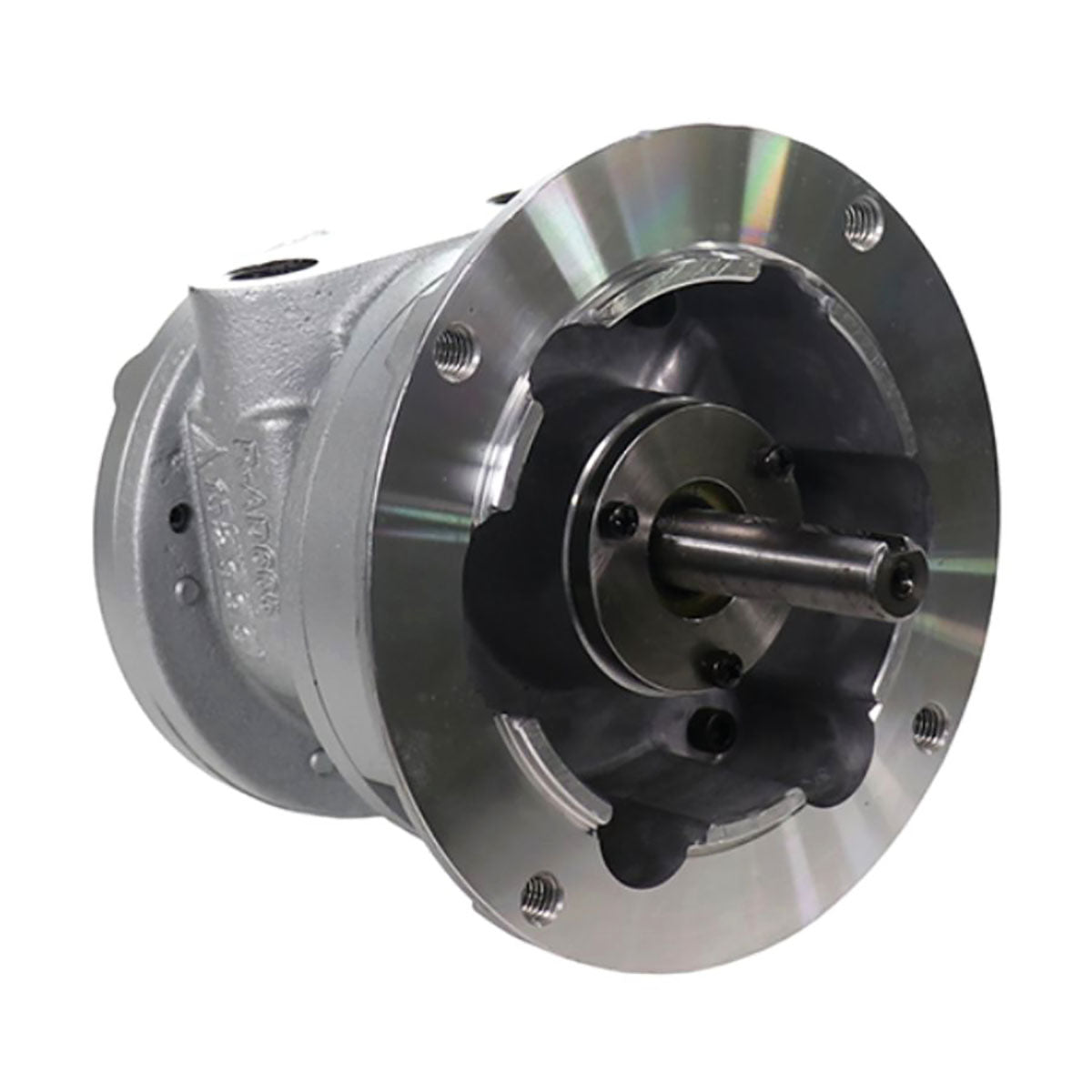

Gast 6AM-NRV-22A Air Motor Reversible Lubricated 4HP
Gast 6AM-NRV-22A Air Motor Reversible Lubricated 4HP
No reviews
Gast
SKU:6AM-NRV-22A
Low stock: 6 left
Regular price
$729.99 USD
Regular price
Sale price
$729.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The compact and portable 6AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control are not only cost-effective over electric motor controls, but they can also be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool-running and have no electrical spark, which makes them ideal for use in hazardous locations.
The 6AM-NRV-22A air motor features:
FRL Combo: MP10215
Filter: FD380-6
Regulator: R380-6G
Lubricator: L380D-6
To rebuild or repair this Air Motor, please use the Gast Repair Kit: K281.
The 6AM-NRV-22A air motor features:
- an adjustable operating speed up to 3,000 RPM
- power output up to 4 HP
- non-electrical
- cool running
- extreme temperature locations (0–250 °F)
FRL Combo: MP10215
Filter: FD380-6
Regulator: R380-6G
Lubricator: L380D-6
To rebuild or repair this Air Motor, please use the Gast Repair Kit: K281.
This item has a 1-year manufacturer's warranty.
| Key Type: | M30-KEYSQ 1 1/4 |
|---|---|
| Max Air Consumption: | 128 cfm ( 217.47 m3h ) |
| Max Power: | 4 hp ( 2.98 kW ) |
| Max Pressure: | 7 bar ( 101.53 psi ) |
| Max Sound Level: | 90 dB(A) |
| Max Speed: | 3000 rpm |
| Max Torque: | 115 in-lb ( 13 N m ) |
| Mount: | FLANGE |
| Output Shaft Type: | Keyed |
| Port Size and Type: | 1/2" NPT |
| Regulatory Approval: | CE, ATEX |
| Rotation: | Reversible |
| Shaft Size: | 0.63 in ( 16 mm ) |
| Stainless Steel: | NO |
| Starting Torque @ 80psi: | 61 in-lb ( 6.89 N m ) |
| Torque Max Speed: | 84 in-lb ( 9.49 N m ) |
| Vanes: | 8 |
| Weight: | 13 lbs ( 5.9 kg ) |
