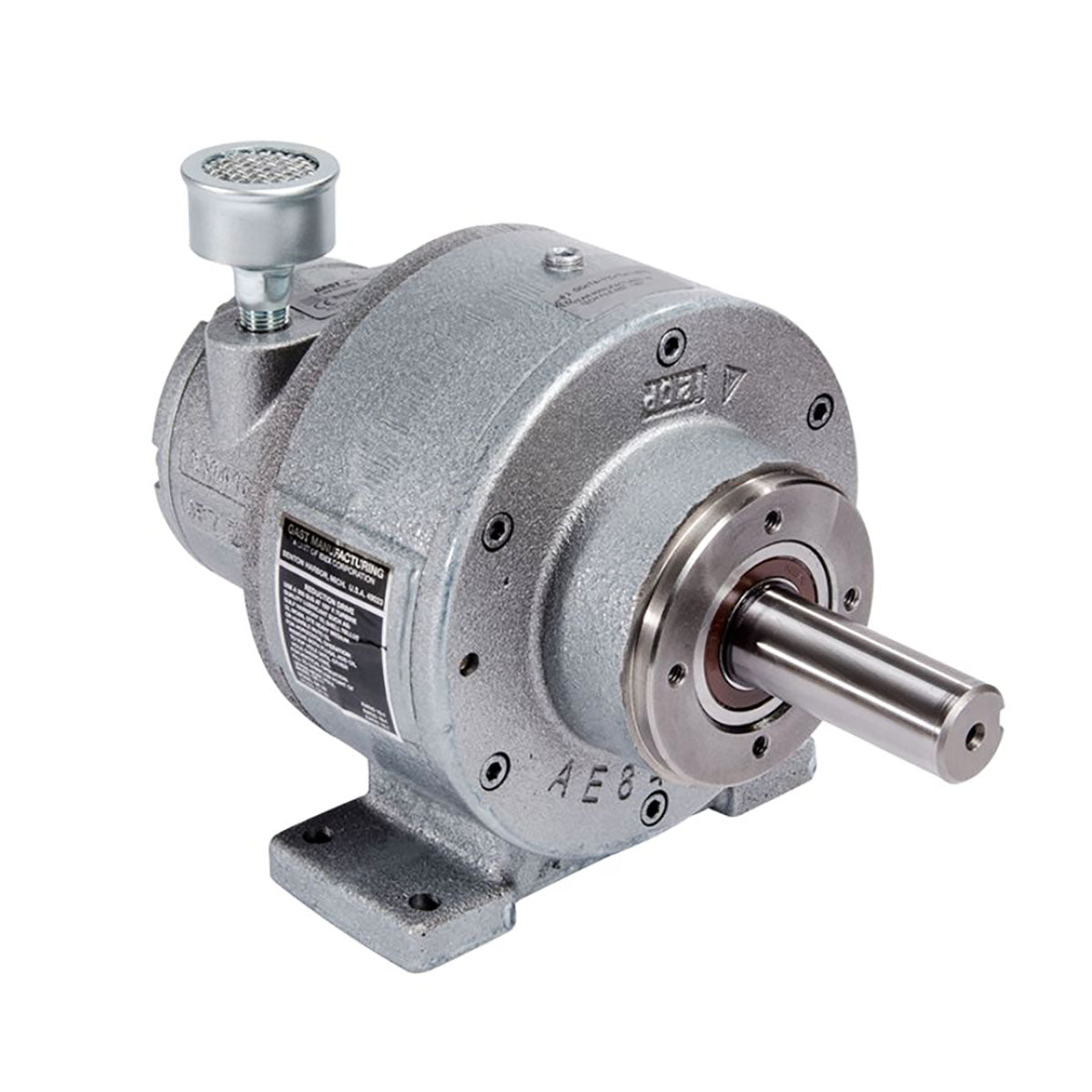

Gast 4AM-RV-75-GR25 Air Motor Reversible Lubricated 1.7 HP
Gast 4AM-RV-75-GR25 Air Motor Reversible Lubricated 1.7 HP
Gast
SKU:4AM-RV-75-GR25
Low stock: 8 left
Couldn't load pickup availability
The compact and portable 4AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control are not only cost-effective over electric motor controls, but they can also be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool-running and have no electrical spark, which makes them ideal for use in hazardous locations.
The 4AM-RV-75-GR25 air motor features:
- an adjustable operating speed up to 200 RPM
- power output up to 1.7 HP
- non-electrical
- cool running
- extreme temperature locations (0–250 °F)
Equipment comes with a 1 year OEM warranty.
FRL Combo: BAG1A1B6A12
Filter: FD350-4
Regulator: R350-4G
Lubricator: L350D-4
To rebuild or repair this Air Motor, please use the Gast Repair Kit: K205.
This item has a 1-year manufacturer's warranty.
Product Specifications
| Key Type: | M30-KEYSQ |
| Max Air Consumption: | 60 cfm ( 101.94 m3h ) |
| Max Power: | 1.7 hp ( 1.27 kW ) |
| Max Pressure: | 5.5 bar ( 79.77 psi ) |
| Max Sound Level: | 87 dB(A) |
| Max Speed: | 200 rpm |
| Max Torque: | 640 in-lb ( 72.32 N m ) |
| Mount: | FACE/FOOT |
| Output Shaft Type: | Keyed |
| Port Size and Type: | 1/4" NPT |
| Regulatory Approval: | CE, ATEX |
| Rotation: | Reversible |
| Shaft Size: | 1 in ( 25.4 mm ) |
| Stainless Steel: | NO |
| Starting Torque @ 80psi: | 300 in-lb ( 33.9 N m ) |
| Torque Max Speed: | 400 in-lb ( 45.2 N m ) |
| Vanes: | 4 |
| Weight: | 28 lbs ( 12.7 kg ) |
