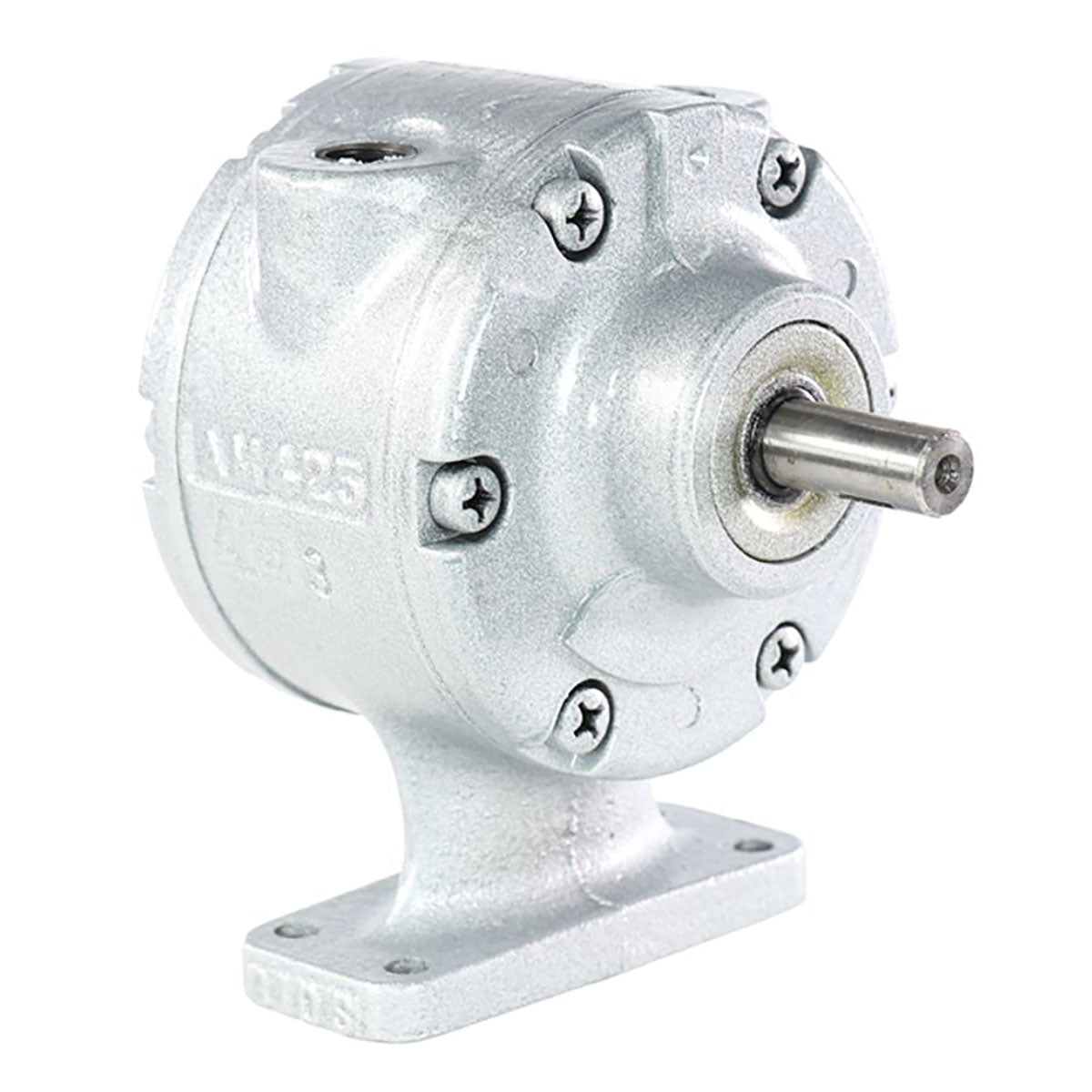

Gast 4AM-FRV-13C Air Motor Reversible Lubricated 1.7 HP

Gast 4AM-FRV-13C Air Motor Reversible Lubricated 1.7 HP

Gast

4AM-FRV-13C

23 in stock

$339.56 USD
$339.56 USD
Sale Sold out
Shipping calculated at checkout.
The compact and portable 4AM-FRV-13C offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control are not only cost-effective over electric motor controls, but they can also be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool-running and have no electrical spark, which makes them ideal for use in hazardous locations.

The 4AM-FRV-13C air motor features:




  • an adjustable operating speed up to 3000 RPM

  • power output of up to 1.7 HP

  • non-electrical

  • cool running

  • extreme temperature locations (0–250 °F)




FRL Combo: BAG1A1B6A12

Filter: FD350-4

Regulator: R350-4G

Lubricator: L350D-4

To rebuild or repair this Air Motor, please use the Gast Repair Kit: K205.

This item has a 1-year manufacturer's warranty.


Key Type: #3 Woodruff
Max Air Consumption: 78 cfm ( 132.52 m3h )
Max Power: 1.7 hp ( 1.27 kW )
Max Pressure: 7 bar ( 101.53 psi )
Max Sound Level: 87 dB(A)
Max Speed: 3000 rpm
Max Torque: 56 in-lb ( 6.33 N m )
Mount: FOOT
Output Shaft Type: Keyed
Port Size and Type: 1/4" NPT
Regulatory Approval: CE, ATEX
Rotation: Reversible
Shaft Size: 0.5 in ( 12.7 mm )
Stainless Steel: NO
Starting Torque @ 80psi: 28 in-lb ( 3.16 N m )
Torque Max Speed: 36 in-lb ( 4.07 N m )
Vanes: 4
Weight: 7.5 lbs ( 3.4 kg )
