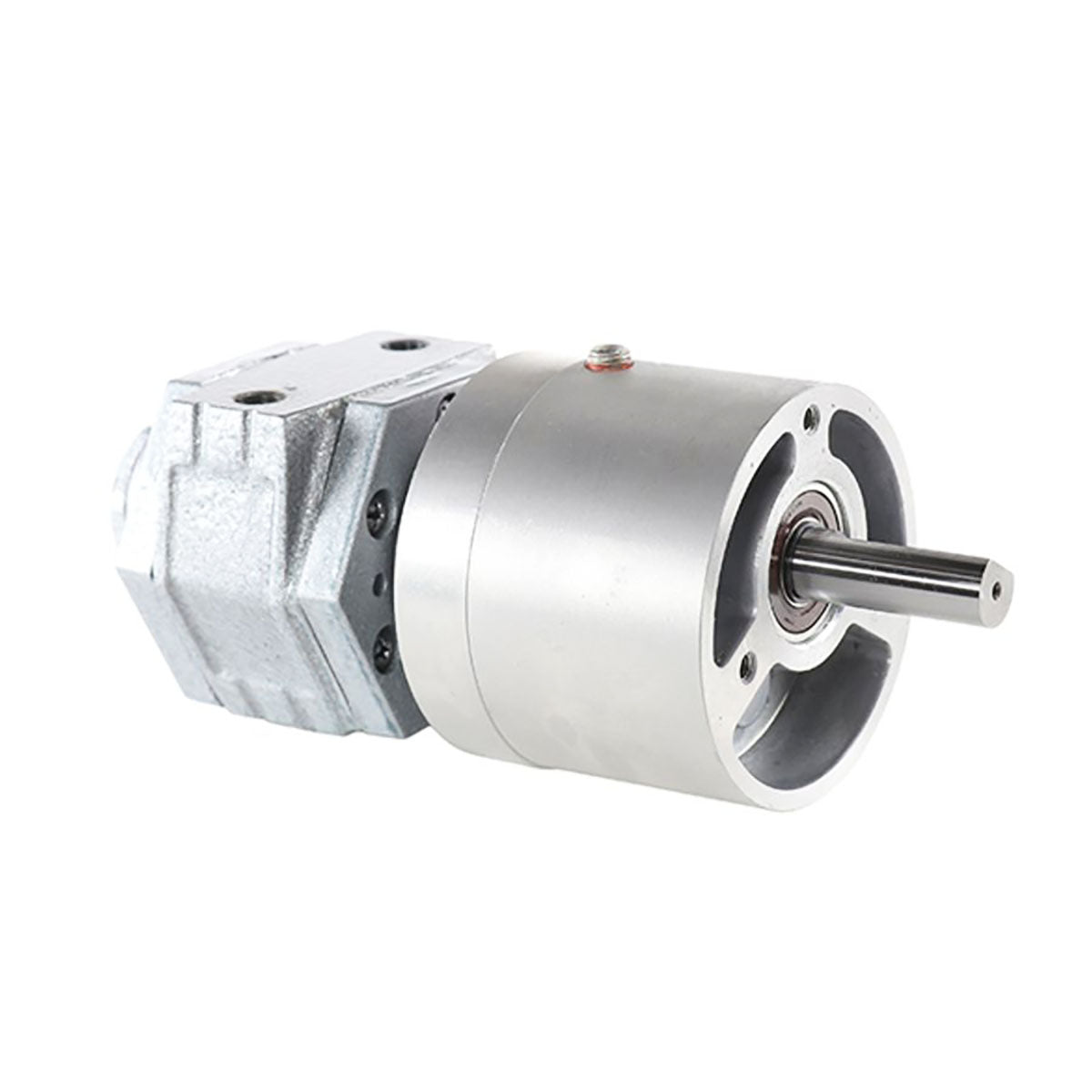

Gast 1UP-NRV-4-GR11 Air Motor Reversible Lubricated 0.31 HP
Gast 1UP-NRV-4-GR11 Air Motor Reversible Lubricated 0.31 HP
Gast
SKU:1UP-NRV-4-GR11
Low stock: 9 left
Regular price
$574.02 USD
Regular price
Sale price
$574.02 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Replacement for 1UP-NRV-16-GR11
The 1UP-NRV-4-GR11 Air Motor features:
-
- an adjustable operating speed and power output
- a non-electrical device
- cool running
- face mounting
- the ability to instantly start, stop, and reverse
- the ability to stall for long periods of time without damaging the motor
- the ability to operate in extreme temperature locations (0–250 °F)
This item has a 1-year manufacturer's warranty.
Product Specifications
| Max Air Consumption: | 21 cfm ( 35.68 m3h ) |
| Max Power: | 0.31 hp ( 0.23 kW ) |
| Max Pressure: | 5.6 bar ( 81.22 psi ) |
| Max Sound Level: | 78 dB(A) |
| Max Speed: | 400 rpm |
| Max Torque: | 95 in-lb ( 10.74 N m ) |
| Mount: | Face |
| Output Shaft Type: | Flat |
| Port Size and Type: | 1/8" NPT |
| Regulatory Approval: | CE, ATEX |
| Rotation: | Reversible |
| Shaft Size: | 0.5 in ( 12.7 mm ) |
| Stainless Steel: | No |
| Starting Torque @ 80psi: | 75 in-lb ( 8.48 N m ) |
| Torque Max Speed: | 49 in-lb ( 5.54 N m ) |
| Vanes: | 4 |
| Weight: | 3.1 lbs ( 27.22 kg ) |
