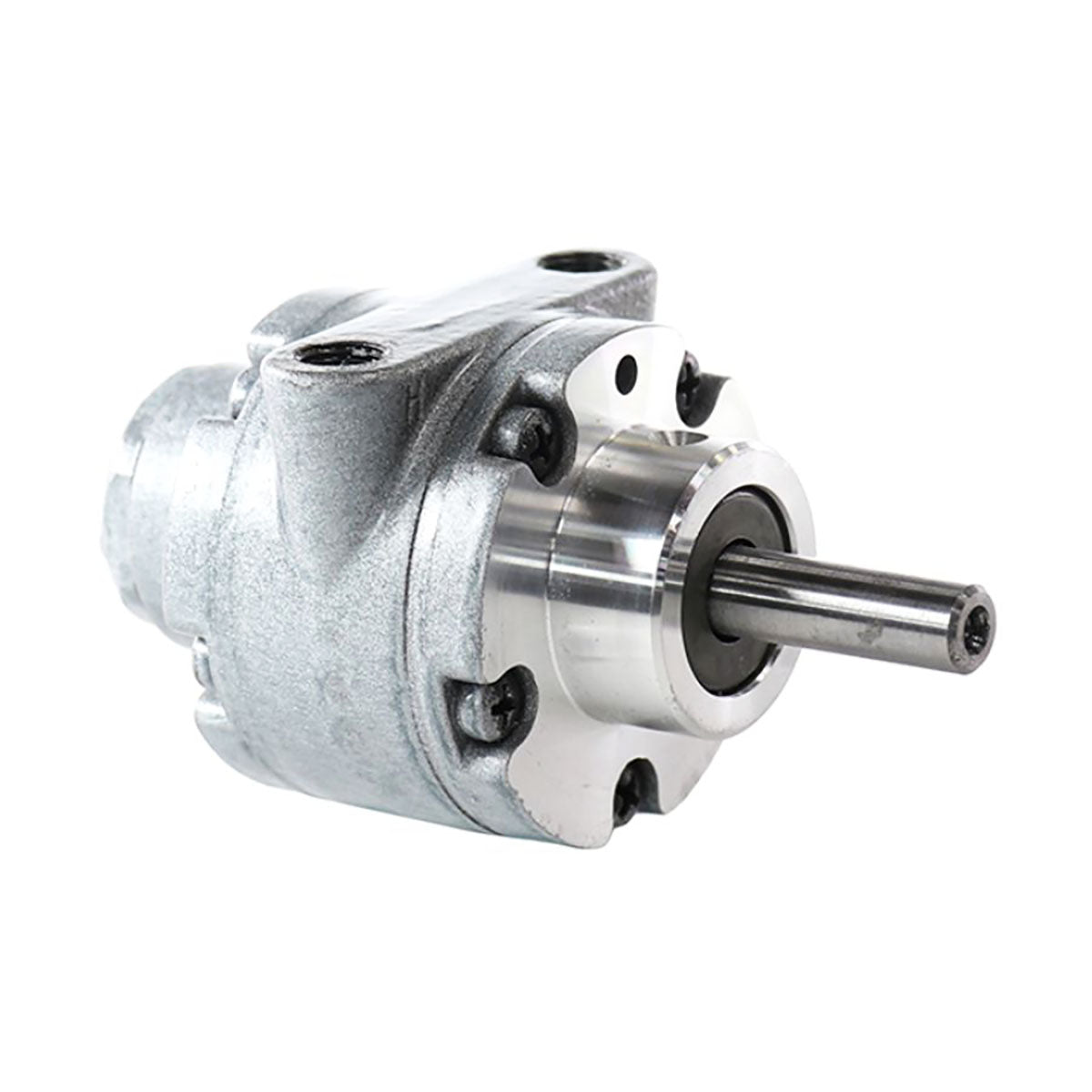

Gast 1UP-NRV-10 Air Motor Reversible Lubricated 0.42 HP 8 Vane
Gast 1UP-NRV-10 Air Motor Reversible Lubricated 0.42 HP 8 Vane
No reviews
Gast
SKU:1UP-NRV-10
16 in stock
Regular price
$367.99 USD
Regular price
Sale price
$367.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The 1UP-NRV-10 air motor features:
- an adjustable operating speed up to 6000 RPM
- power output up to 0.42 HP
- non-electrical
- cool running
- extreme temperature locations (0–250 °F)
Equipment comes with a 1 year OEM warranty.
To rebuild or repair this Air Motor, please use the Gast Repair Kit: K298.
This item has a 1-year manufacturer's warranty.
| Max Air Consumption: | 27 cfm ( 45.87 m3h ) |
|---|---|
| Max Power: | 0.42 hp ( 0.31 kW ) |
| Max Pressure: | 5.6 bar ( 81.22 psi ) |
| Max Sound Level: | 78 dB(A) |
| Max Speed: | 6000 rpm |
| Max Torque: | 6 in-lb ( 0.68 N m ) |
| Mount: | HUB |
| Output Shaft Type: | Flat |
| Port Size and Type: | 1/8" NPT |
| Regulatory Approval: | CE, ATEX |
| Rotation: | Reversible |
| Shaft Size: | 0.38 in ( 9.65 mm ) |
| Stainless Steel: | NO |
| Starting Torque @ 80psi: | 5 in-lb ( 0.57 N m ) |
| Torque Max Speed: | 5.25 in-lb ( 0.59 N m ) |
| Vanes: | 8 |
| Weight: | 3 lbs ( 1.36 kg ) |
