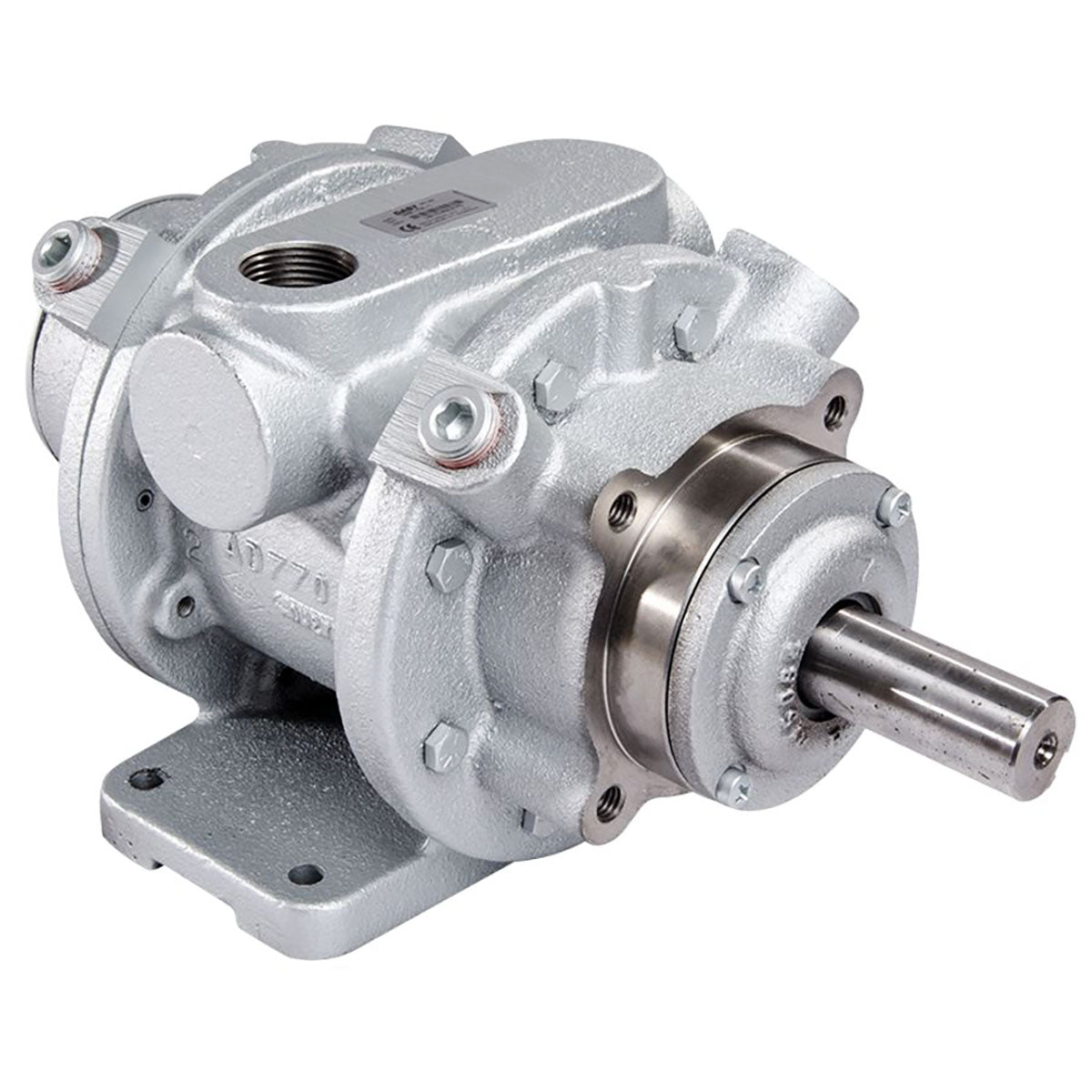

Gast 16AM-FRV-2 Air Motor Reversible Lubricated 9 HP 6 Vane
Gast 16AM-FRV-2 Air Motor Reversible Lubricated 9 HP 6 Vane
Gast
SKU:16AM-FRV-2
Low stock: 2 left
Couldn't load pickup availability
The 16AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control are not only cost-effective over electric motor controls, but they can also be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool-running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.
The 16AM-FRV-2 air motor features:
- an adjustable operating speed up to 2000 RPM
- power output up to 9 HP
- air consumption up to 275 CFM
- non-electrical
- cool running
- extreme temperature locations (0–250 °F)
FRL Combo: BFDRL289D-10HQ
Filter: BFD200-10E5
Regulator: R180-10G
Lubricator: L29D-10
Find FRLs matched to this air motor.
Repair kits are available for additional purchase K213. Equipment comes with a 1-year OEM warranty.
This item has a 1-year manufacturer's warranty.
Product Specifications
| Key Type: | M30-KEYSQ |
| Max Air Consumption: | 275 cfm ( 275 no label ) |
| Max Power: | 9 hp ( 6.71 kW ) |
| Max Pressure: | 7 bar ( 101.53 psi ) |
| Max Sound Level: | 113 dB(A) |
| Max Speed: | 2000 rpm |
| Max Torque: | 372 in-lb ( 42.04 N m ) |
| Mount: | FOOT |
| Output Shaft Type: | Keyed |
| Port Size and Type: | 1-1/4" NPT |
| Regulatory Approval: | CE, ATEX |
| Rotation: | Reversible |
| Shaft Size: | 1.13 in ( 28.7 mm ) |
| Stainless Steel: | NO |
| Starting Torque @ 80psi: | 268 in-lb ( 30.28 N m ) |
| Vanes: | 6 |
| Weight: | 73 lbs ( 33.11 kg ) |
