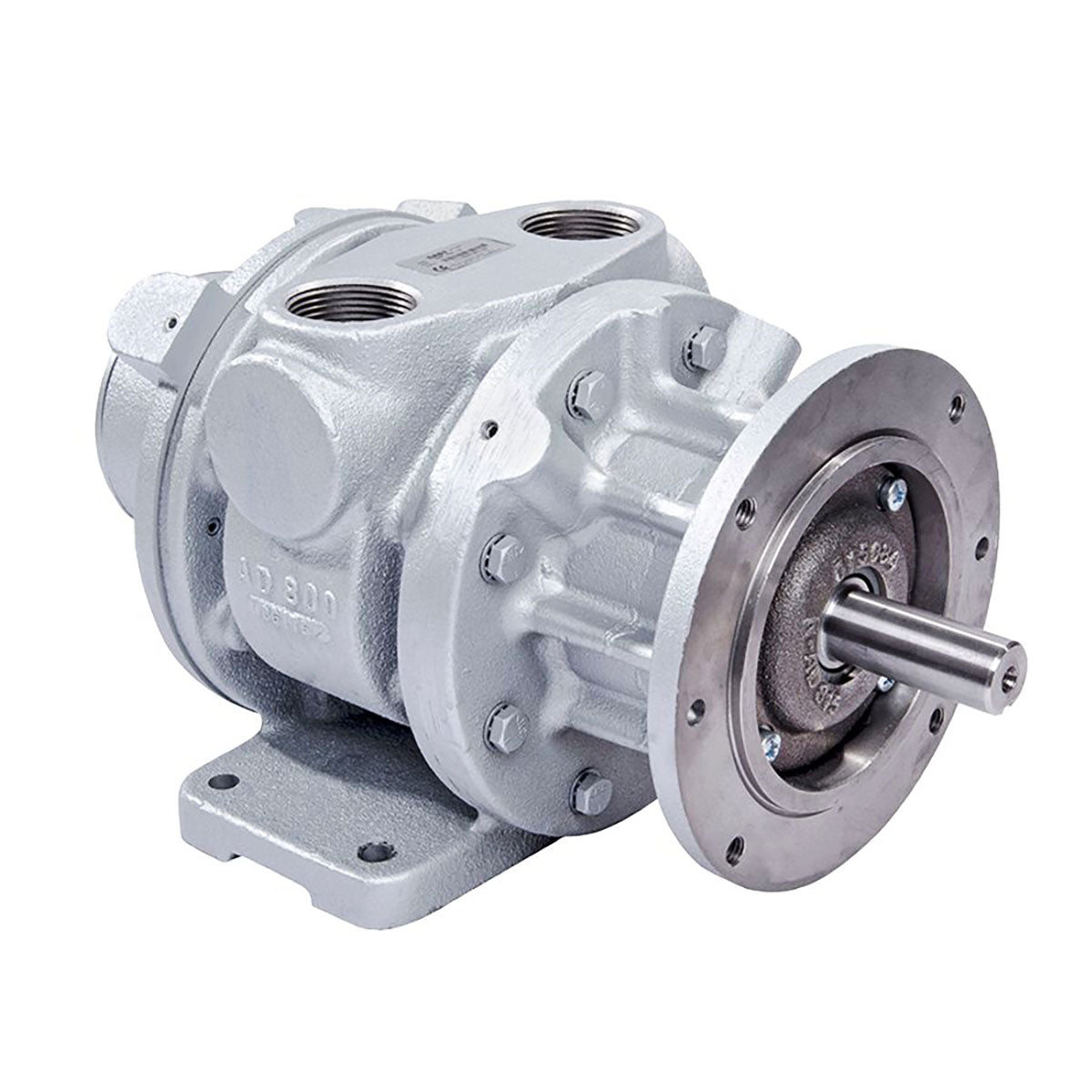

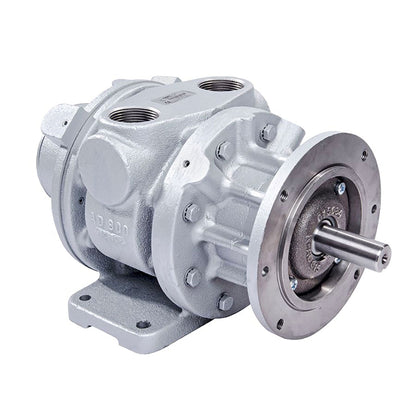

Gast 16AM-FRV-13 Air Motor Reversible Lubricated 9 HP 6 Vane
Gast 16AM-FRV-13 Air Motor Reversible Lubricated 9 HP 6 Vane
Gast
SKU:16AM-FRV-13
12 in stock
Couldn't load pickup availability
The 16AM series offers variable operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control are not only cost-effective over electric motor controls, but they can also be stalled or overloaded for long periods without damaging the motor. In addition to being a non-electrical device and cool-running, Gast air motors are ideal for use in hazardous and extreme ambient temperature locations.
Max Air Consumption: 275 cfm
Port Size and Type: 1-1/4" NPT
Max Power: 9 hp
Max Pressure: 101 psi
Max Sound Level: 113 dB(A)
Max Speed: 2000 rpm
Max Torque: 372 in-lb
Foot mount • NEMA 143 and 145TC mounting • Any plane operation
FRL Combo: BFDRL289D-10HQ
Filter: BFD200-10E5
Regulator: R180-10G
Lubricator: L29D-10
Repair kits are available for additional purchase K213. Equipment comes with a 1 year OEM warranty.
This item has a 1-year manufacturer's warranty.
Product Specifications
| Key Type | M30-KEYSQ 1.0 |
| Max Air Consumption | 275 cfm ( 467.23 m3h ) |
| Max Power | 9 hp ( 6.71 kW ) |
| Max Pressure | 101 psi ( 6.96 bar ) |
| Max Sound Level | 113 dB(A) |
| Max Speed | 2000 rpm |
| Max Torque | 372 in-lb ( 42.04 N m ) |
| Mount | FOOT |
| Output Shaft Type | Keyed |
| Port Size and Type | 1-1/4" NPT |
| Regulatory Approval | CE, ATEX |
| Rotation | Reversible |
| Shaft Size | 0.88 in |
| Stainless Steel | NO |
| Starting Torque @ 80psi | 268 in-lb ( 30.28 N m ) |
| Torque Max Speed | 290 in-lb ( 32.77 N m ) |
| Vanes | 6 |
| Weight | 80 lbs ( 36.29 kg ) |
