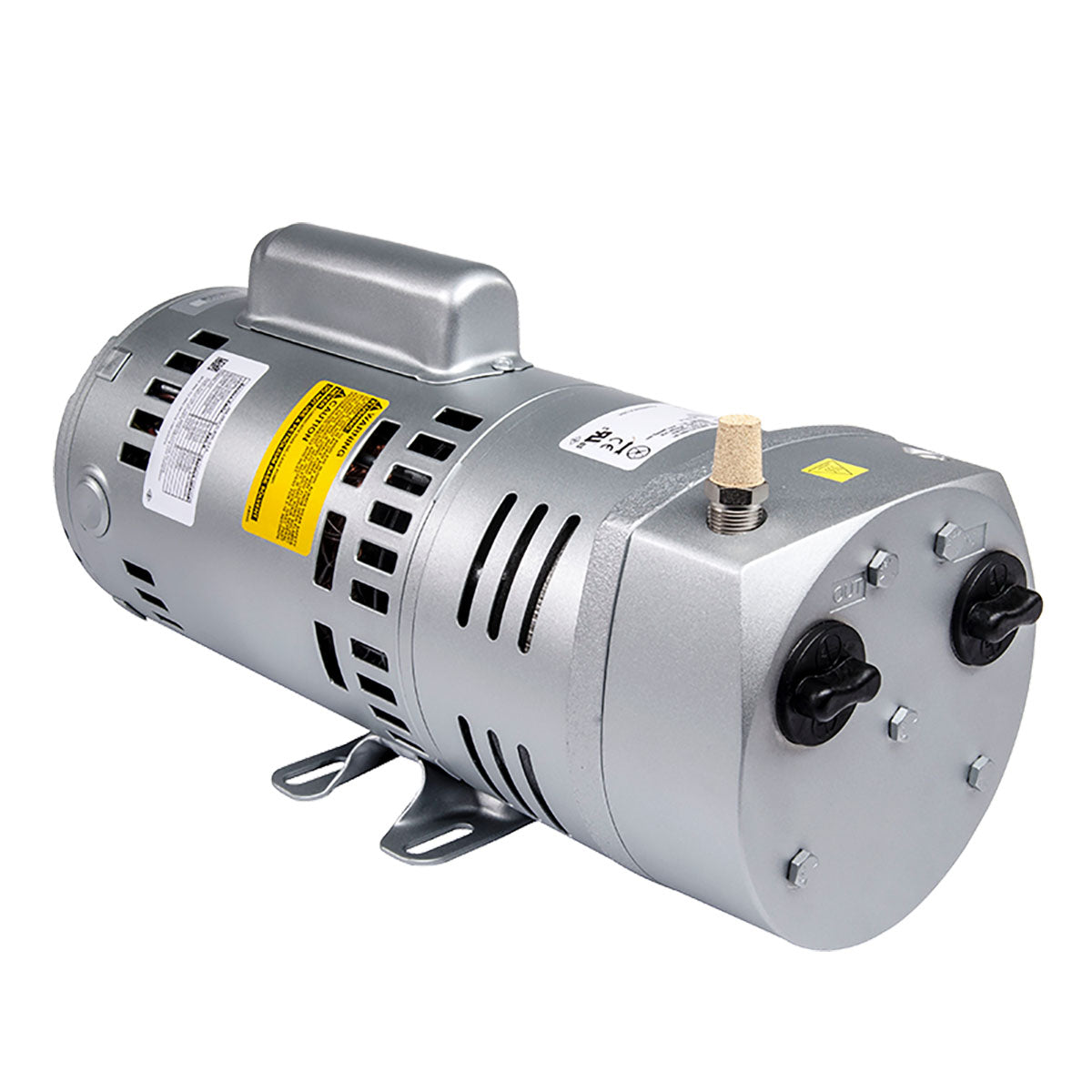

Gast 0823-101Q-G273 Rotary Vane Compressor 1/2 HP
Gast 0823-101Q-G273 Rotary Vane Compressor 1/2 HP
Gast
SKU:0823-101Q-G273
31 in stock
Couldn't load pickup availability
Please note: This product's operating voltage is between 208 - 415VAC (3 Phase). Check the wiring before installation. Cables not included.
The Gast 0823-101Q-G273 rotary vane compressor produces less than 70 dB of noise, making it convenient for in patient laboratory environments.
Higher vacuum levels are possible with the robust, easy-to-install 0823, which also offers superior internal corrosion prevention and a longer lifespan. Because of their inherent sound suppression, which lowers operational noise levels, they are ideal for noise-sensitive environments like laboratories, dental offices, and health care facilities. These compact units also provide high flow, pulse-free air, which makes them perfect for applications that need steady air pressure and flow.
The Gast Repair Kit AK526 is available for additional purchase. Equipment comes with a 1-year OEM warranty.
This item has a 1-year manufacturer's warranty.
Product Specifications
| Thermal Protection: | NO |
| Operating Voltage: | 230/380-415,208-230/415 |
| Regulatory Approval: | CSA,CE |
| Flow @ 50hz: | 6.5 cfm ( 11.04 m3h ) |
| Flow @ 60hz: | 8 cfm ( 13.59 m3h ) |
| Max Pressure: | 10 psi ( 0.69 bar ) |
| Max Pressure @ 50hz: | 10 psi ( 0.69 bar ) |
| Max Pressure @ 60hz: | 10 psi ( 0.69 bar ) |
| Max Vacuum @ 50hz: | 26 in-hg ( 880.46 mbar ) |
| Max Vacuum @ 60hz: | 26 in-hg ( 880.46 mbar ) |
| Weight: | 52 lbs ( 23.59 kg ) |
| Duty Cycle: | 100% |
| Warranty: | 1 Year |
