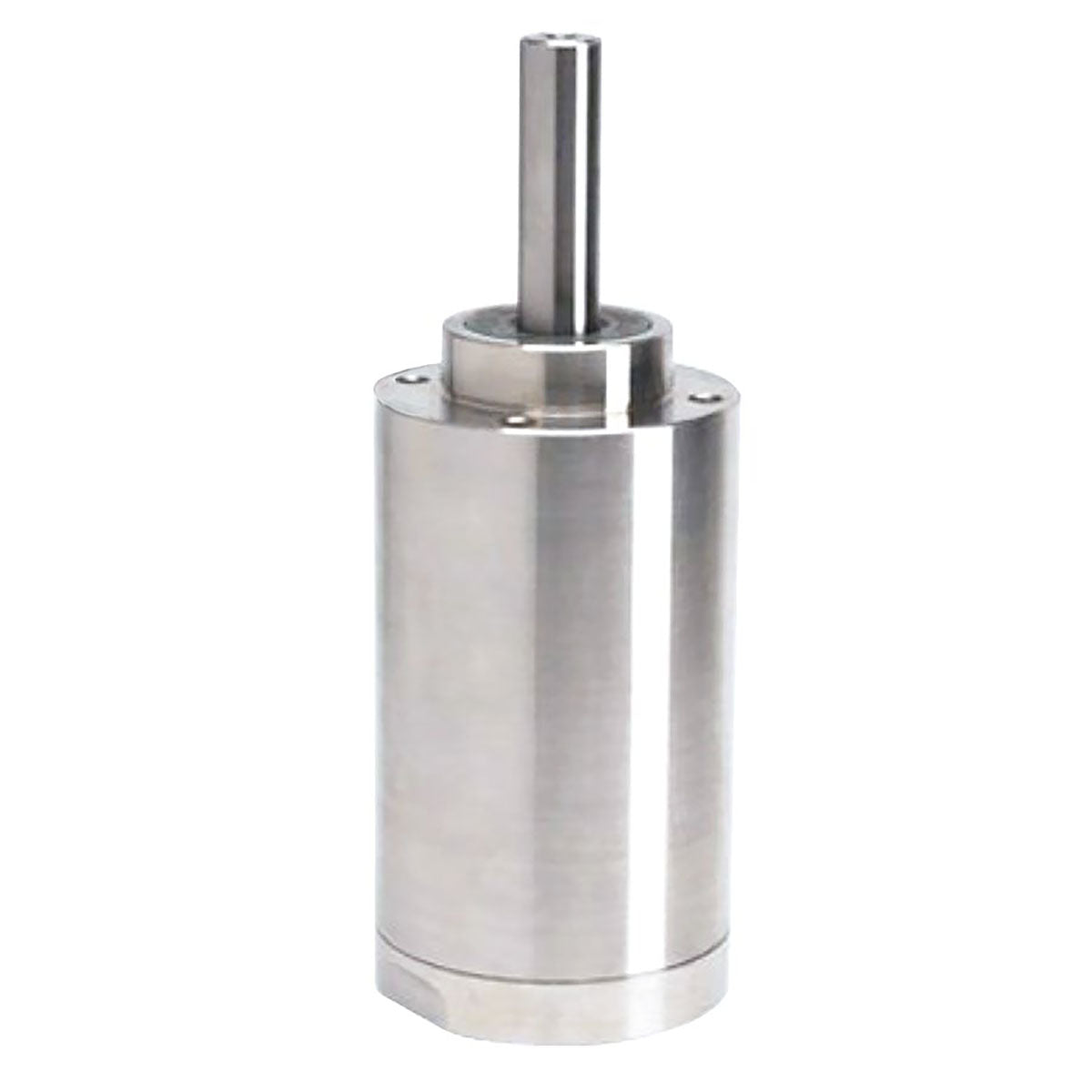

Air Motor MVP06DS-ANC-NXXA-01

• Versatile mounting: NEMA 56C flange mounting rated for lubricated or non-lubricated operation.
• Reversible operation: Porting designed for reversible functionality.
• Precise control: Variable speed and power adjustment by throttling inlet air pressure or restricting exhaust air.
• Higher efficiency: Generates more power while consuming less energy.
• Easy maintenance: Modular design with a removable back plate for quick internal cartridge swaps.
• Versatile operation: Universal vane material allows use with or without lubrication.
• Enhanced safety: ATEX approved and non-electrical sparking for various environments.
• Heat resistance: Suitable for ambient temperatures up to 250°F (120°C) in non-hazardous atmospheres.
• Smooth starting: Low-shock operation with increased air-line pressure for heavy loads.
• Durable performance: Cool running capability allows indefinite stalling or overloading without damage.
• Reduced risk: Non-sparking operation minimizes the possibility of igniting flammable gases.
• Wide applicability: Lightweight construction and high power-to-weight ratio for diverse applications.

Specifications

• HP: 4.00
• kW: 3.00
• RPM: 3,500.00
• Torque @ Max Power—In. Lb.: 67.00
• Torque @ Max Power—Nm: 7.60
• Max Torque Output (Near Stall)—In. Lb.: 97.00
• Max Torque Output (Near Stall)—Nm: 10.20
• Net Weight: 3.8 Kgs
