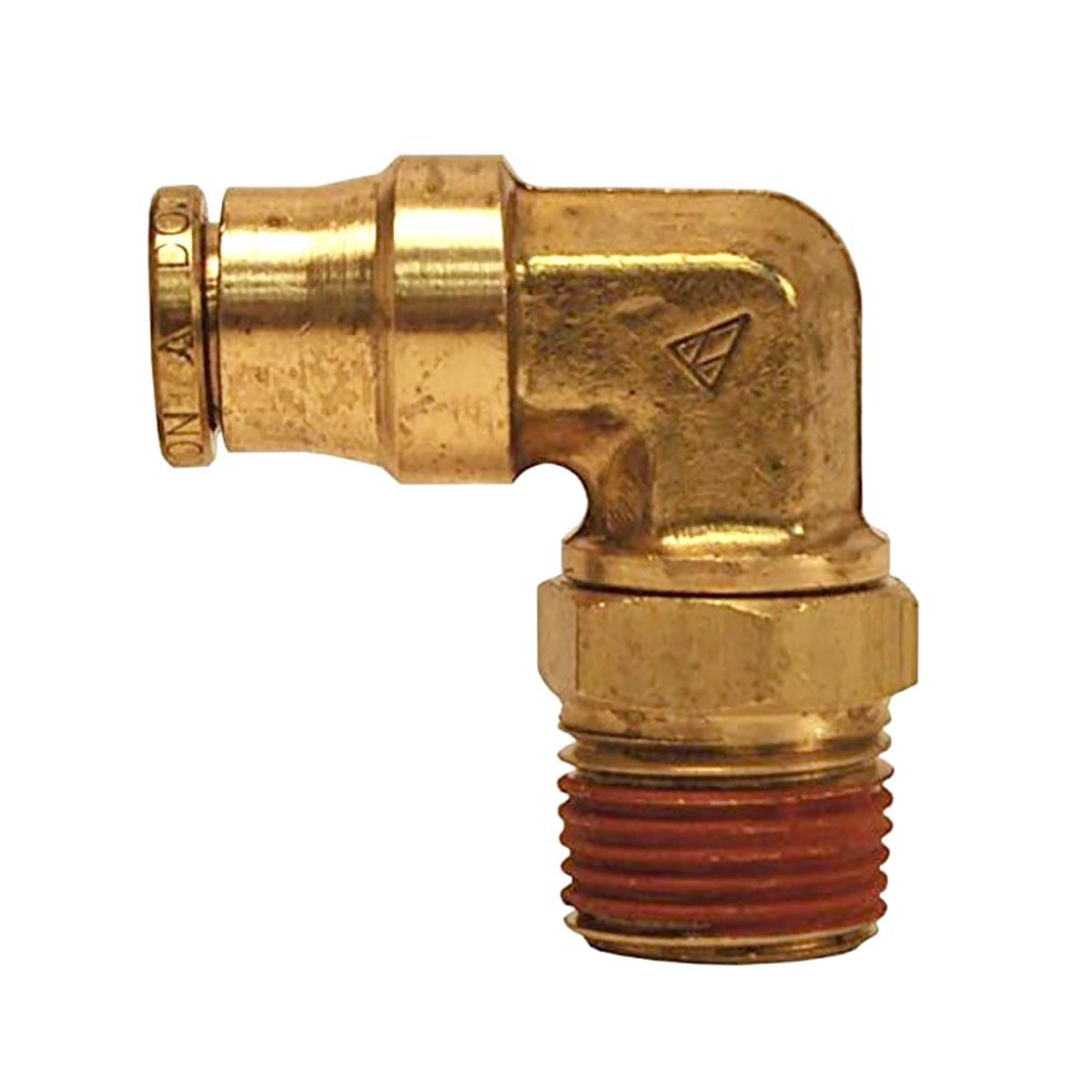

Air-Brake Swivel Male Elbow Push-in Fitting AQ69-DOTS-4X2-WT (10 pcs)

Features
Increased Flow: 60% more flow than conventional fittings
with internal tube supports.
Quicker Assembly: Up to 75% saved time during assembly.
Positive Seal: Tube support area beyond “O” ring exceeds that of all competitive products, compensates for bias cut tubing and dramatically reduces troubleshooting time.
Swivel Elbow: Convenient swivel threaded fittings that allow close center line installation, eliminating orientation problems.
Thread Sealant: Pre-applied at no charge to all AQ Series male threads.
Thread Sealant: Loctite® 516 standard.
Specifications

• Material: CA 377 brass shapes / CA 360 brass straights.
• Performance Requirements: DOT FMVSS 571.106 / SAE J1131 / J2494-3 air brake performance requirements.
• Tubing: J844 Air Brake Tubing.
• Pressure: Designed to handle 200 psi working pressure.
• Tube Size: 4mm
• Thread Size: 1/8"
