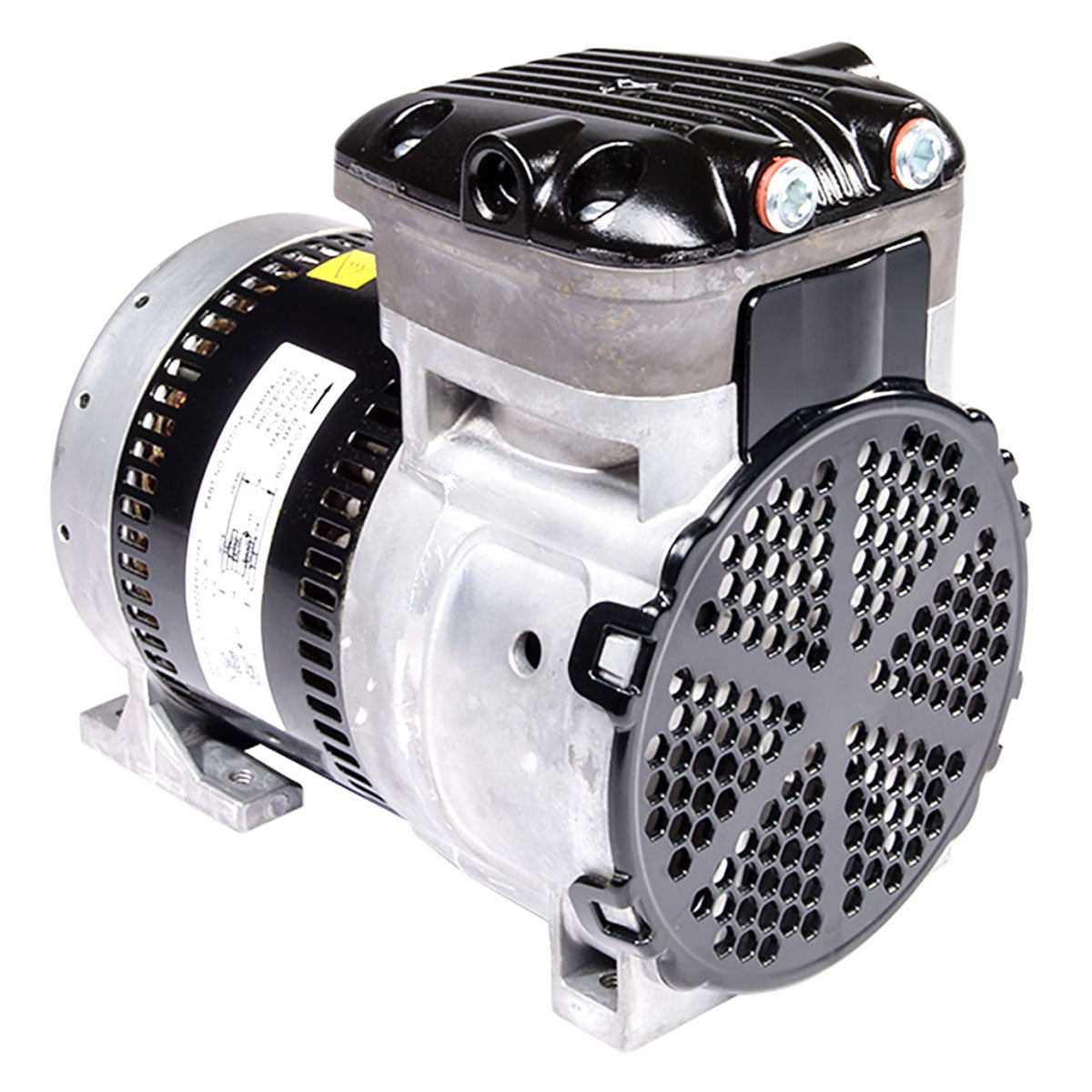

86R142-111-N270X High Pressure Oil-Less Rocking Piston Compressor with Wiring Box - Durable, Quiet, & Easy Retrofit
86R142-111-N270X High Pressure Oil-Less Rocking Piston Compressor with Wiring Box - Durable, Quiet, & Easy Retrofit
Gast
SKU:86R142-111-N270X
In stock
Quantity Pricing Available
Free Same Day Shipping
This item has a 1-year manufacturer's warranty.
Couldn't load pickup availability
Elevate your operations with the 86R142-111-N270X, a special oil-less rocking piston compressor designed for superior performance and durability.
Engineered to deliver high-pressure output at whisper-quiet sound levels below 65 dB, this unit redefines industry standards.
Unlike the standard 86R142-101-N270X, this model includes a prewired 120V wiring box, attached capacitor, and installed filter—saving you $200 while simplifying installation.
With lower exhaust temperatures and a longer lifespan, it’s the perfect solution for applications needing reliability and flexibility.
Easy to retrofit, this compressor addresses your toughest challenges with new and efficient technology.
| Max Pressure | 100 psi | (6.89 bar) |
| Flow @ 60hz | 2 cfm | (3.4 m3h) |
| Flow @ 50hz | 1.7 cfm | (2.89 m3h) |
| Sound Level | Less than 65 dB | |
| Operating Voltage | 100 – 120 (60Hz) | 100 – 120 (50Hz) |
| Thermal Protection | YES | |
| Port Size | 1/4" NPT | |
| Max Vacuum @ 60hz | 27.25 in-hg | (922.79 mbar) |
| Max Vacuum @ 50hz | 27.25 in-hg | (922.79 mbar) |
| Weight | 14.9 lbs | (6.76 kg) |
| Duty Cycle | 100% | |
| Warranty | 1 Year | |
| Max Continuous Pressure | 100 psi | |
| Regulatory Approval | UL | CE |
