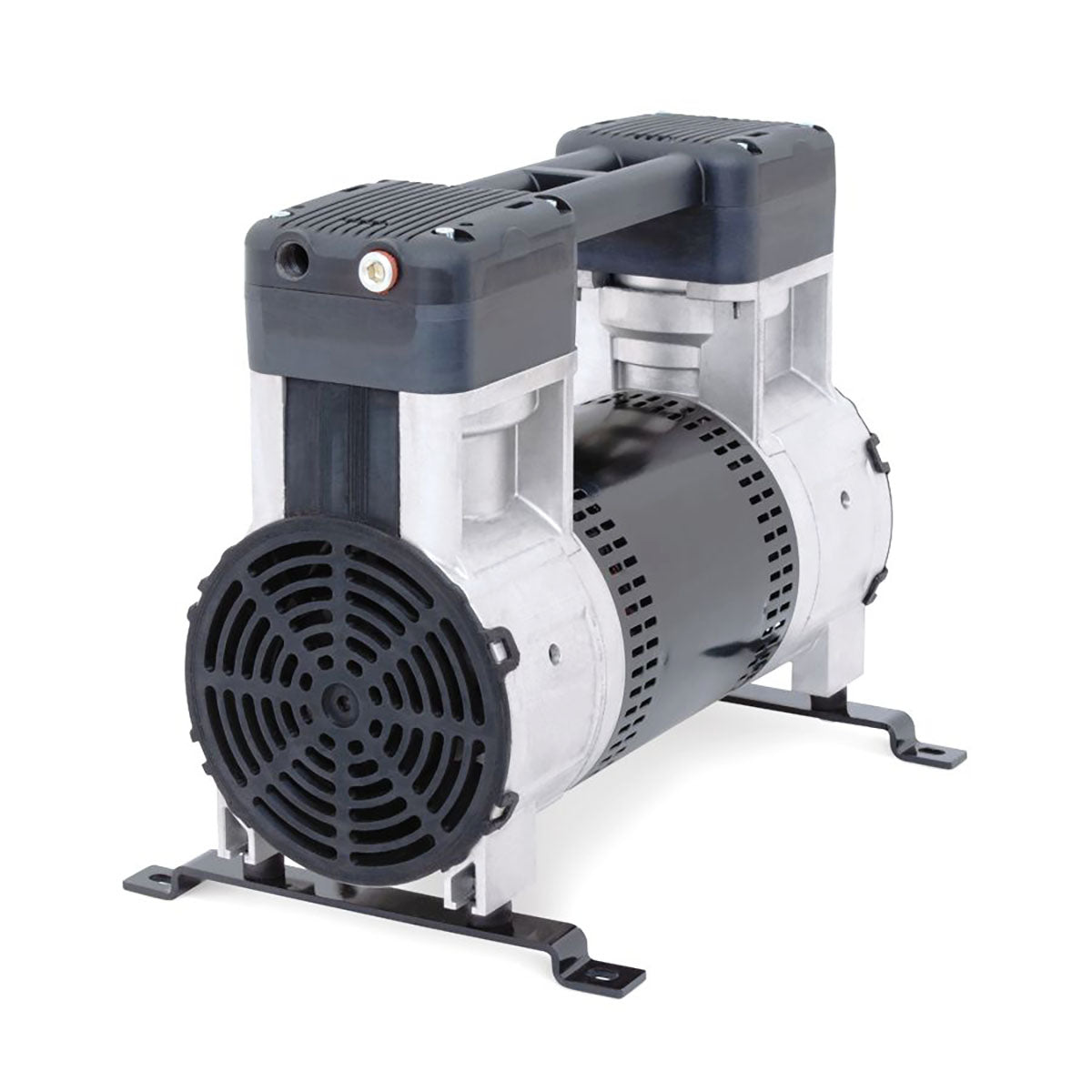

120R689-P101-N800NX Oil-Less Rocking Piston Compressor for High Pressure and Durable Performance
120R689-P101-N800NX Oil-Less Rocking Piston Compressor for High Pressure and Durable Performance
Gast
SKU:120R689-P101-N800NX
Low stock: 4 left
Regular price
$2,035.11 USD
Regular price
Sale price
$2,035.11 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The 120R689-P101-N800NX provides powerful oil-less compression with 12 cfm flow at 60 Hz and 145 psi max pressure, making it an ideal choice for industrial pneumatic systems requiring consistent, high-output performance.
Built with a 2 HP motor, 100% duty cycle, and thermal protection, this rocking piston compressor excels in medical, dental, and laboratory settings where clean, dry air is critical.
Its rugged construction ensures long-term reliability, while quiet operation and dual-frequency motor support (200-230V 50/60 Hz) offer versatility and ease of integration into demanding applications.
This item has a 1-year manufacturer's warranty.
Product Specifications
| Flow @ 60hz: | 12 cfm | ( 20.39 m3h ) |
| Flow @ 50hz: | 10 cfm | ( 16.99 m3h ) |
| Max Pressure: | 145 psi | ( 10 bar ) |
| Max Pressure @ 60hz: | 145 psi | ( 10 bar ) |
| Max Pressure @ 50hz: | 145 psi | ( 10 bar ) |
| Max Vacuum @ 60hz: | 28 in-hg | ( 948.19 mbar ) |
| Max Vacuum @ 50hz: | 28 in-hg | ( 948.19 mbar ) |
| Power Rating: | 2 hp | ( 1.49 kW ) |
| Power Rating @ 60hz: | 2 hp | ( 1.49 kW ) |
| Power Rating @ 50hz: | 2 hp | ( 1.49 kW ) |
| Power Requirement: | 2 HP | |
| Operating Voltage: | 200-230V 50Hz | 200-230V 60Hz |
| Max Speed: | 1725 rpm | |
| Max Speed @ 60hz: | 1750 rpm | |
| Max Speed @ 50hz: | 1425 rpm | |
| Amps Running @ 60hz: | 10 | |
| Amps Running @ 50hz: | 8 | |
| Weight: | 59 lbs | ( 26.76 kg ) |
| Duty Cycle: | 100% | |
| Thermal Protection: | YES | |
| Regulatory Approval: | UL | CE |
| Warranty: | 1 Year |
